Gubacsi Road Bridge

Design of the Gubacsi Road Bridge on the Ferencváros-Kelenföld railway line

The railway bridges over Gubacsi Road, regardless of their size, will be built at one of the most complex junctions of Ferencváros-Kelenföld railway line, as one of its member will connect the future planned bridge overspanning Ferencváros railway station to the main railway line no. 1, on the other hand there is significant public utility involvement.

Continuously maintaining the traffic of public road, urban tramway under and railway traffic of railway line no. 1 over the bridges was a priority design criteria, so the design of the construction phases and construction pits required a great level of care and consideration.

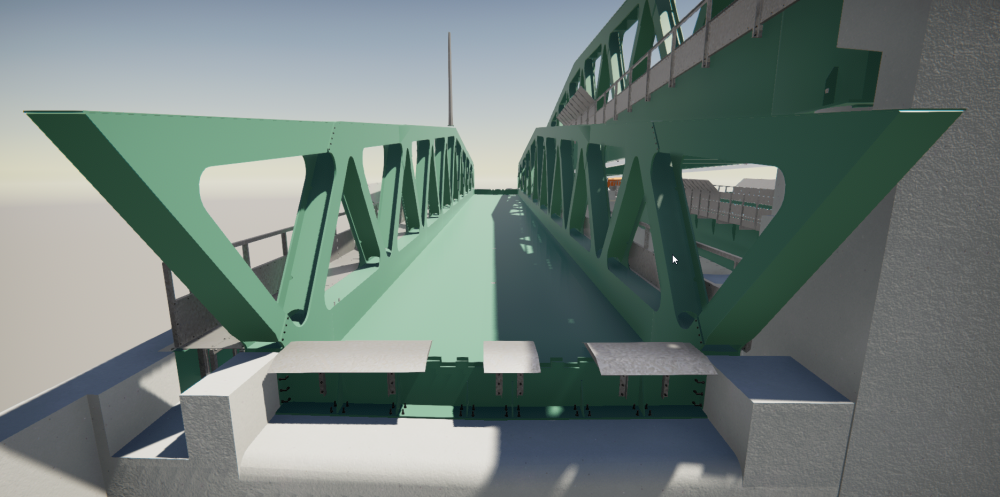

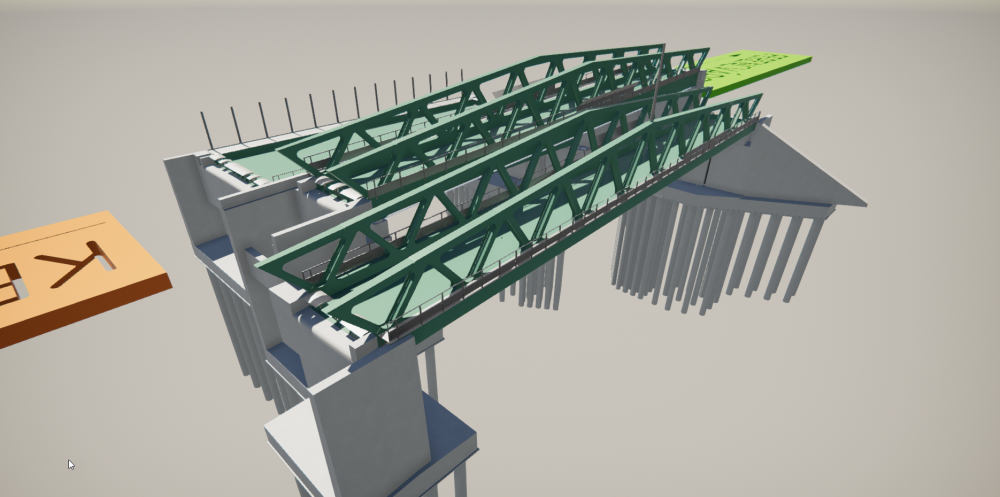

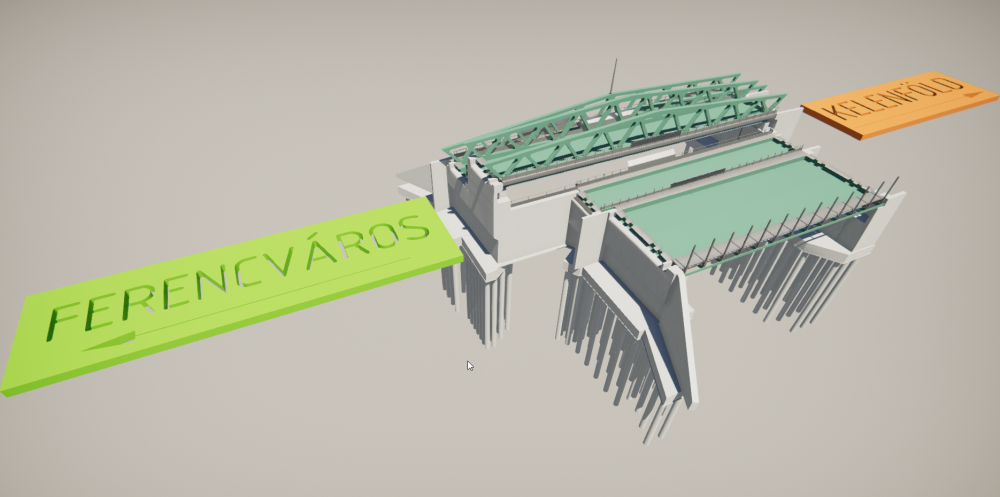

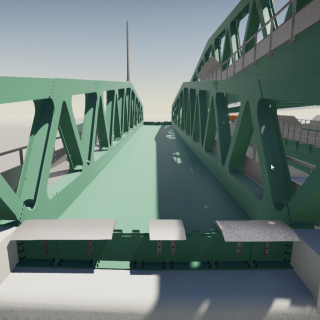

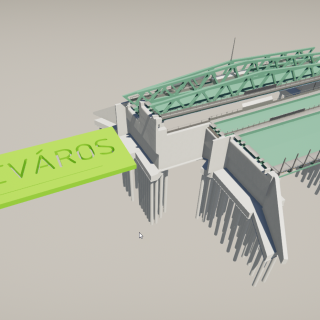

Due to the manageability of the unusual, complex geometry resulting from numerous design constraints, the design of the substructures and superstructures of all bridges was carried on a 3D (CDE – common data environment) basis by CÉH Zrt. In addition to traditional methods, the calculation of superstructures was supplemented by parametric control in some cases.
